Ⅱ. Technical Specification
|
Features
|
Simultaneously measure the electrical parameters of the oil field: AC current, voltage, frequency, phase between voltage and current, on-off resistance value, maximum current of the pumping unit up and down strokes, stroke ratio, up and down stroke time, number of strokes per minute
|
|
Power supply
|
DC7.2V (1.2V 6 AA rechargeable batteries)
|
|
Jaw size
|
Round mouth current clamp: 34mm×36mm
|
|
Range
(automatic)
|
Voltage: AC 0V～700V
|
Voltage: AC 1V
|
Voltage: ±(2%FS)
|
|
Current: AC 0.0A～300A
|
Current: AC 0.1A
|
Current: ±(2%FS)
|
|
Phase: 0°～360°
|
Phase: 1°
|
Phase: ±10°
|
|
Frequency: 45.0Hz～65.0Hz
|
Frequency: 0.1Hz
|
Frequency: ±1 Hz
|
|
Number of hashtags
|
No. 100
|
|
Data storage
|
500 groups
|
|
USB interface
|
USB interface, the stored data can be uploaded to the computer, which is easy to analyze and manage the data, and edit the hash mark through the software
|
|
Communication line
|
USB communication cable, 1 meter long
|
|
Hashtag settings
|
11-digit code, pound sign can be edited by instrument or host computer software
|
|
Clock function
|
Have
|
|
Password setting
|
Yes, 6-digit password
|
|
Backlight function
|
Yes, suitable for dark places and night use
|
|
Automatic shut-down
|
The meter shuts down after about 15 minutes of inactivity
|
|
Power consumption
|
The maximum power consumption when the backlight is turned on is 50mA
|
|
When the backlight is turned off, the meter consumes 30mA
|
|
Display mode
|
LCD display, 128dots×64dots
|
|
Meter size
|
Length, width and thickness: 204mm×100mm×35mm
|
|
Detection rate
|
About 2 seconds/time
|
|
Battery voltage
|
The meter displays the battery voltage in time. When the battery voltage is lower than 5.5V, the battery voltage low symbol will be displayed, please charge in time
|
|
Instrument quality
|
About 1kg (including accessories)
|
|
Test lead length
|
1.5m
|
|
Current clamp wire length
|
2m
|
|
Working temperature and humidity
|
-20℃～40℃; below 80%Rh
|
|
Storage temperature and humidity
|
-10℃～60℃; below 70%Rh
|
|
Input resistance
|
Test voltage input impedance: 1MΩ
|
|
Pressure resistance
|
Withstand 1000V/50Hz sine wave AC voltage between instrument circuit and enclosure for 1 minute
|
|
Insulation
|
Between instrument line and sheath shell ≥100MΩ
|
|
Structure
|
Double insulation with insulating anti-vibration jacket
|
|
Suitable for safety regulations
|
IEC61010-1 CAT Ⅲ 600V, IEC61010-031, IEC61326, pollution degree 2
|

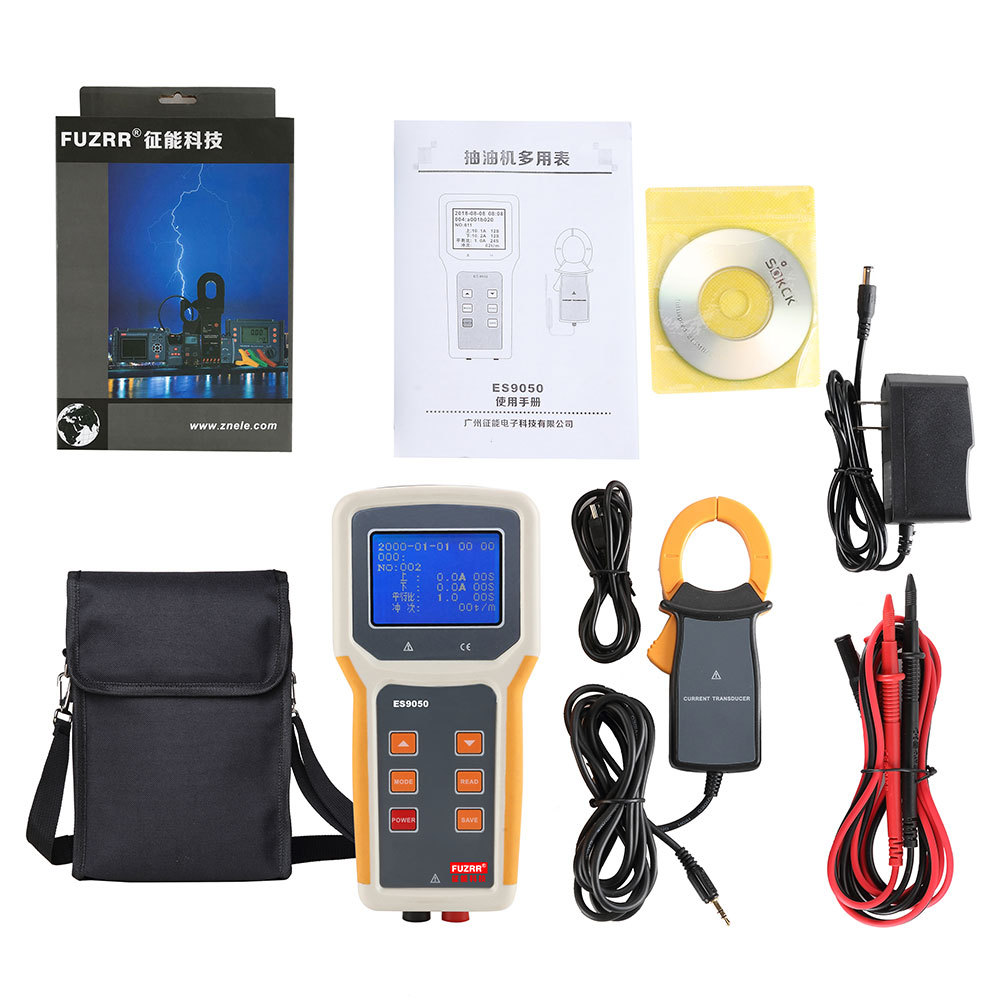

Ⅲ. Packing List
|
host
|
1 set
|
|
instrument package
|
1
|
|
current clamp
|
1
|
|
System software CD
|
1 pc
|
|
USB communication cable
|
1
|
|
test line
|
2 pieces
|
|
charger
|
1
|
|
rechargeable battery
|
5 (1.2V AA battery)
|
|
Manual, Warranty
|
1 serving
|
