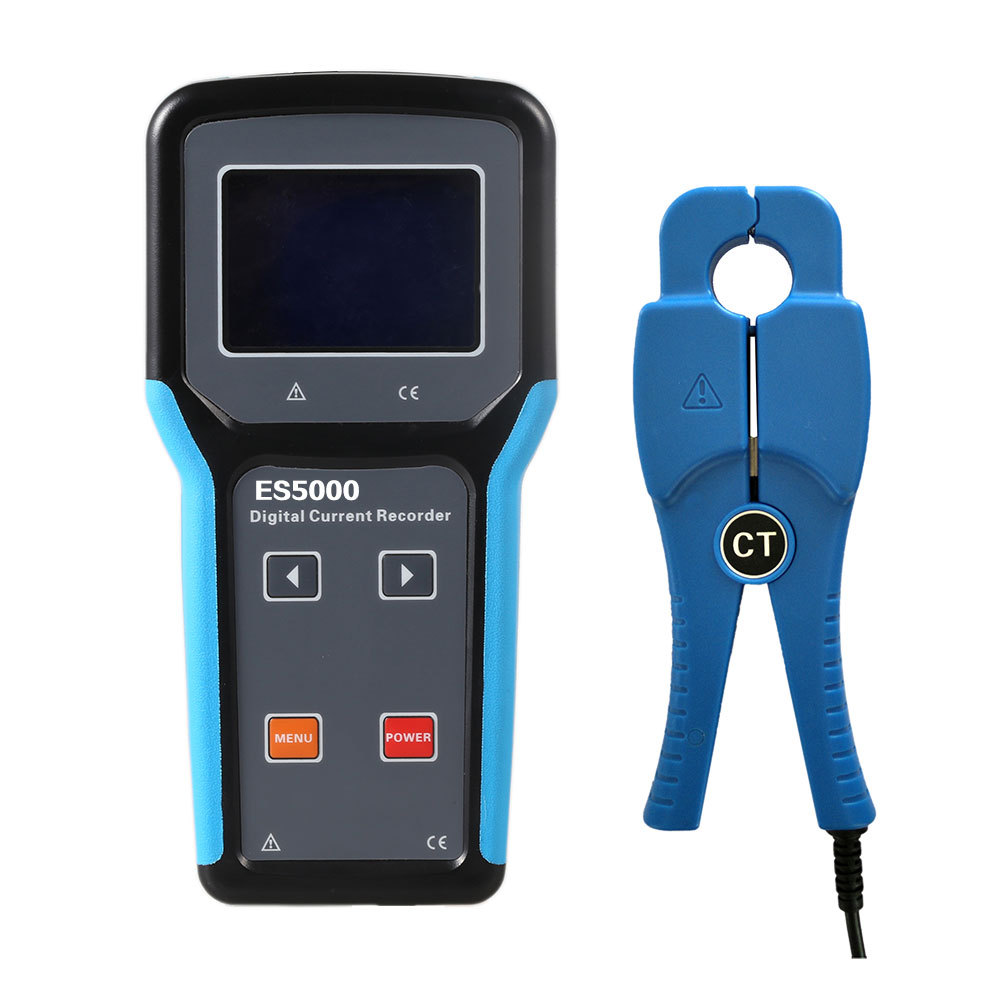

Ⅱ. Technical Specification
|
Range
|
0.0mA-200A
|
|
Jaw size
|
Φ20mm
|
|
Resolution
|
0.1mA
|
|
Accuracy
|
±0.5%FS
|
|
Features
|
AC current measurement records, online monitoring records, line maintenance, fault finding
|
|
Power supply
|
DC6V NiMH rechargeable battery 1.2V×5
|
|
Test method
|
Clamp CT, mean current detection
|
|
Display mode
|
LCD: 128dots×64dots
|
|
Frequency
|
50/60Hz
|
|
Host size
|
Width, height and thickness 100mm×204mm×35mm
|
|
Current clamp size
|
Width, height and thickness 60mm×160mm×20mm
|
|
Quality
|
Host: 409g (including battery) Charger: 83.5g
|
|
Current clamp: 260g
|
|
LCD size
|
Display area: 62mm×44mm
|
|
Sample rate
|
2 times/sec
|
|
Storage medium
|
TF card
|
|
Data storage
|
9999 groups (no data loss if power off or battery replacement)
|
|
Set time
|
Set the recording interval within 1 to 60 minutes, 0 minutes means no automatic storage
|
|
Record time
|
Work continuously for 2 days in power-saving mode (can be connected to an adapter for uninterrupted recording)
|
|
Real Time Clock
|
Have
|
|
Clock setting function
|
Have
|
|
Data interface
|
Standard protocol, USB transmission
|
|
Line voltage
|
Line test below AC600V
|
|
Overflow display
|
Overrange overflow function: "OL" symbol display
|
|
Battery voltage
|
When the battery voltage drops to 5.2V, the low battery voltage symbol will be displayed to remind you to charge. The measured data is also accurate at this time.
|
|
Rated power
|
15mA in power saving mode, 25mA maximum
|
|
Lead length
|
Standard 2 meters
|
|
Working temperature and humidity
|
-10℃～40℃; below 80%rh
|
|
Storage temperature and humidity
|
-10℃～60℃; below 70%rh
|
|
Insulation resistance
|
Above 20MΩ, 1000V
|
|
Suitable for safety regulations
|
IEC1010-1, IEC1010-2-032, pollution degree 2, CAT Ⅲ (600V) IEC61326 (EMC standard)
|
Ⅲ. Model comparison
|
Model
|
ES5000
|
ES5001
|
|
Range
|
0.0mA-200A
|
0.0mA-1000A
|
|
Jaw size
|
Φ20mm
|
Φ50mm
|
|
Current clamp size
|
width, height and thickness 60mm×160mm×20mm
|
width, height and thickness 101mm×214mm×27mm
|
|
Quality
|
Current clamp: 260g
|
Current clamp: 470g
|

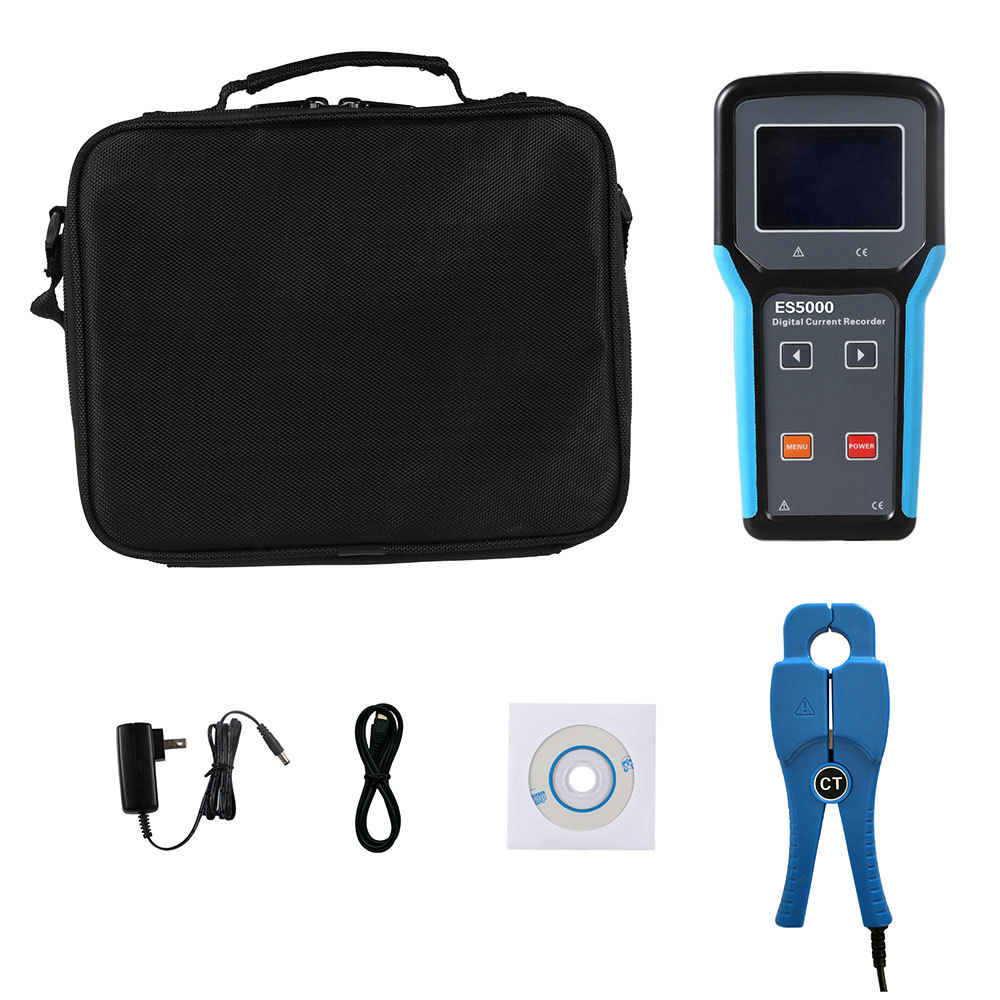

Ⅳ. Packing List
|
Recorder host
|
1 set
|
|
Current clamp
|
1
|
|
USB communication cable
|
1
|
|
2G TF card
|
1 piece
|
|
Monitoring software (CD-ROM)
|
1 piece
|
|
Instrument box
|
1
|
|
NiMH rechargeable battery 1.2V
|
Section 5
|
|
Charger
|
1
|
|
Manual, Warranty
|
1 set
|
