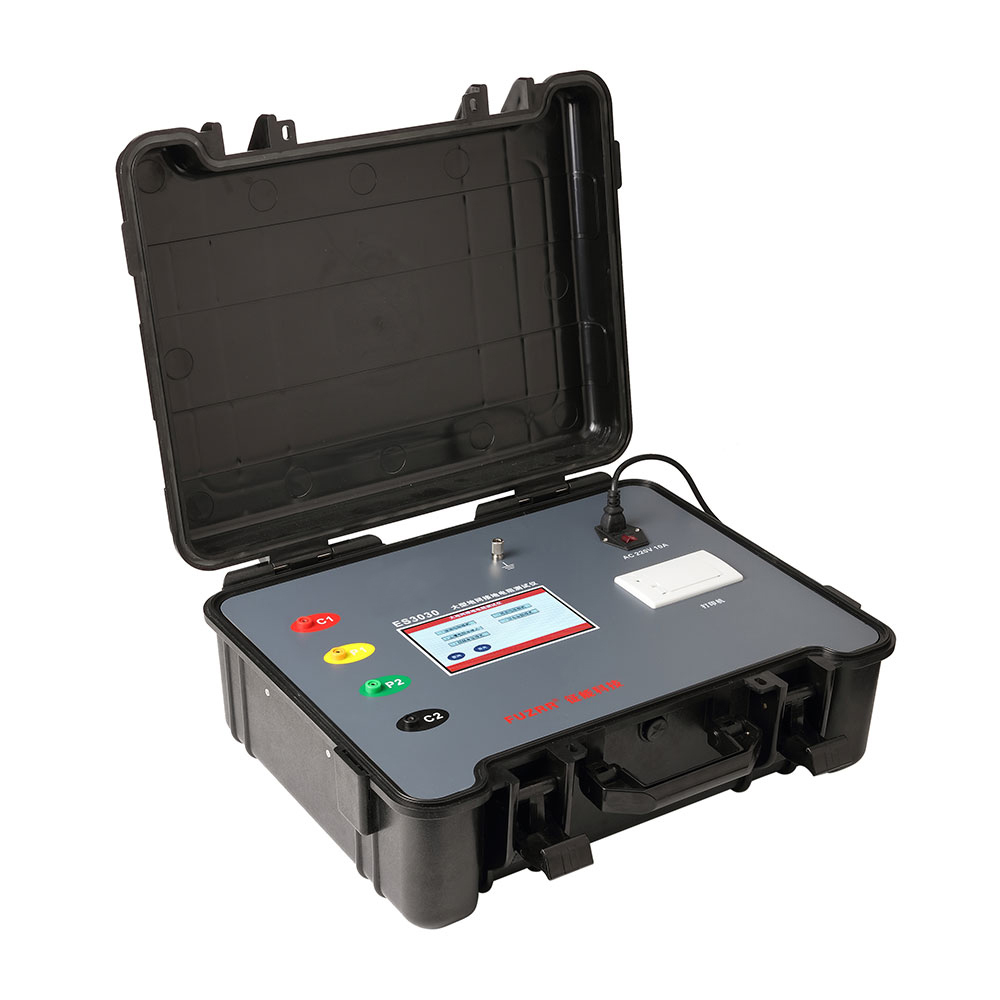

Ⅱ. Range&Technical Specification
|
Features
|
Ground resistance measurement, soil resistivity measurement, step voltage measurement, distributed potential measurement, touch voltage measurement
|
|
Ground impedance
|
0.000~2000Ω Accuracy: ±0.5%FS±5dgt Minimum Resolution: 0.001Ω
|
|
Soil Resistivity Measurement
|
0.000~999KΩm Minimum resolution: 0.001Ωm
|
|
Step voltage measurement, distributed potential measurement, touch voltage measurement
|
0~400V Minimum resolution: 0.001V
|
|
Impedance angle measurement (radians)
|
0~360.0° Resolution: 0.1°
|
|
Rated measuring power
|
2000W
|
|
Anti-interference ability
|
Anti-power frequency 50Hz voltage 50V
|
|
Baseline conditions
|
23℃±5℃, below 70%rh (auxiliary grounding resistance 20Ω±10%, voltage to ground <10V)
|
|
Power supply
|
AC 220V 10A (50Hz)
|
|
Backlight
|
Adjustable backlight brightness
|
|
Measurement method
|
Four-wire test, three-wire test, two-wire test
|
|
Measurement methods
|
Earth impedance: rated current method,
|
|
Short circuit test current
|
1A, 2A, 3A, 4A, 5A (5 settings)
|
|
Soil Resistivity Electrode Spacing Range
|
Can be set from 1m to 100m
|
|
Test frequency
|
45Hz, 55Hz, automatic dual frequency optional
|
|
Short circuit maximum current
|
AC 5A±10% sine wave
|
|
No-load maximum voltage
|
AC 400V±10% sine wave
|
|
Display mode
|
7 inch touch color screen
|
|
Touch screen
|
Yes
|
|
Measurement instructions
|
Measurement progress display, measurement prompt animation display
|
|
Meter size
|
Length, width and height: 540mm×440mm×210mm
|
|
Standard test lead length
|
15m for red, 15m for black, 10m for yellow, 10m for green, 1.5m for yellow, 1.5m for green
|
|
Auxiliary ground rod
|
800mm 2 200mm 2
|
|
Measure time
|
Ground impedance: about 1 minute/time
|
|
Print
|
Built-in thermal printer
|
|
Paper Specifications
|
57*40mm
|
|
Data storage
|
100 groups, "save successfully!" storage indication, display "save failed, the space is full!" The characters indicate that the storage is full
|
|
Data access
|
Have
|
|
Overflow display
|
Overrange overflow function: "OL" symbol display
|
|
Automatic shut-down
|
none
|
|
Power consumption
|
Standby: <110W
|
|
Measurement: 2000W
|
|
Quality
|
Gauge: 27 kg
|
|
Test lead, auxiliary ground rod, instrument bag: 5.5kg
|
|
Working temperature and humidity
|
-10℃～40℃; below 80%rh
|
|
Storage temperature and humidity
|
-20℃～60℃; below 70%rh
|
|
Insulation resistance
|
10MΩ or more (500V between circuit and case)
|
|
Pressure resistance
|
AC 3700V/rms (between circuit and case)
|
|
Electromagnetic properties
|
IEC61010-4-3, radio frequency electromagnetic field≤1V/m
|
|
Suitable for safety regulations
|
IEC61010-1, IEC1010-2-31, IEC61557-1, 5, IEC60529 (IP54), pollution, etc. 2, CAT Ⅲ 300V
|
Ⅲ. Packing List
|

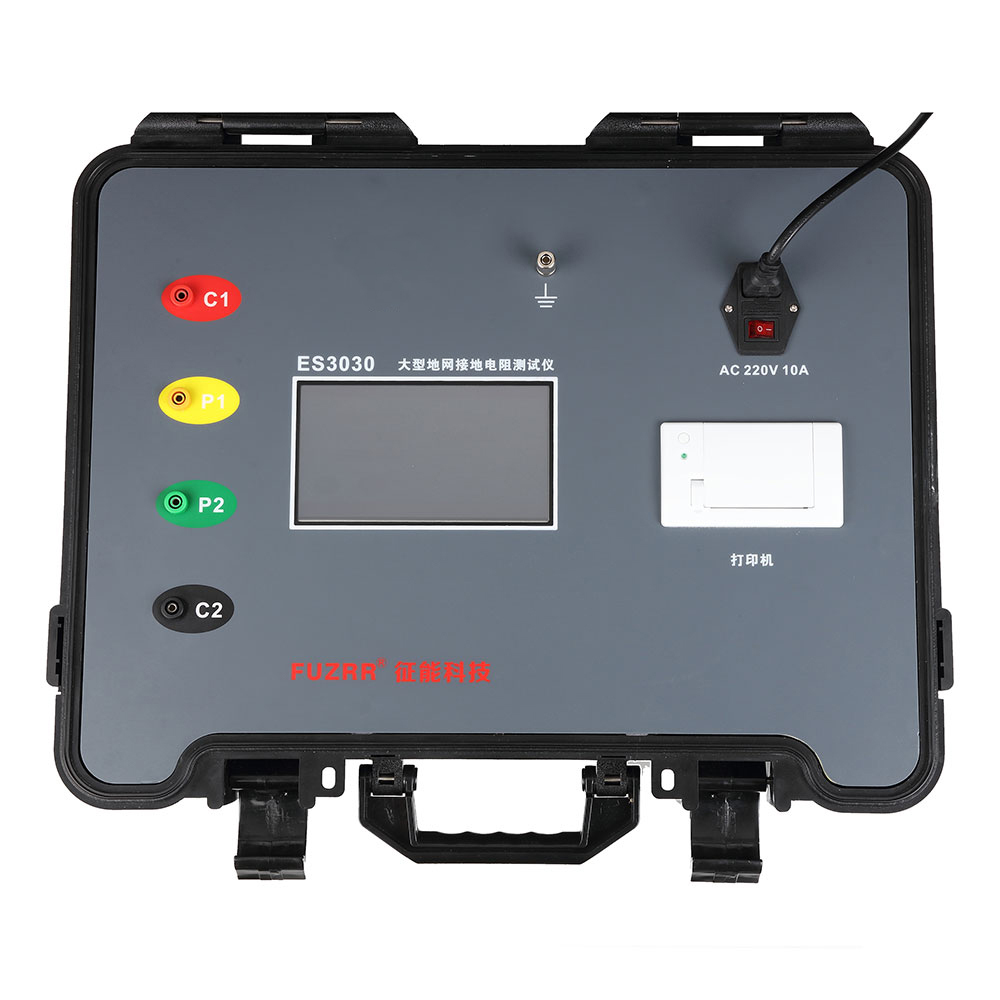

Meter
|
1 set
|
|

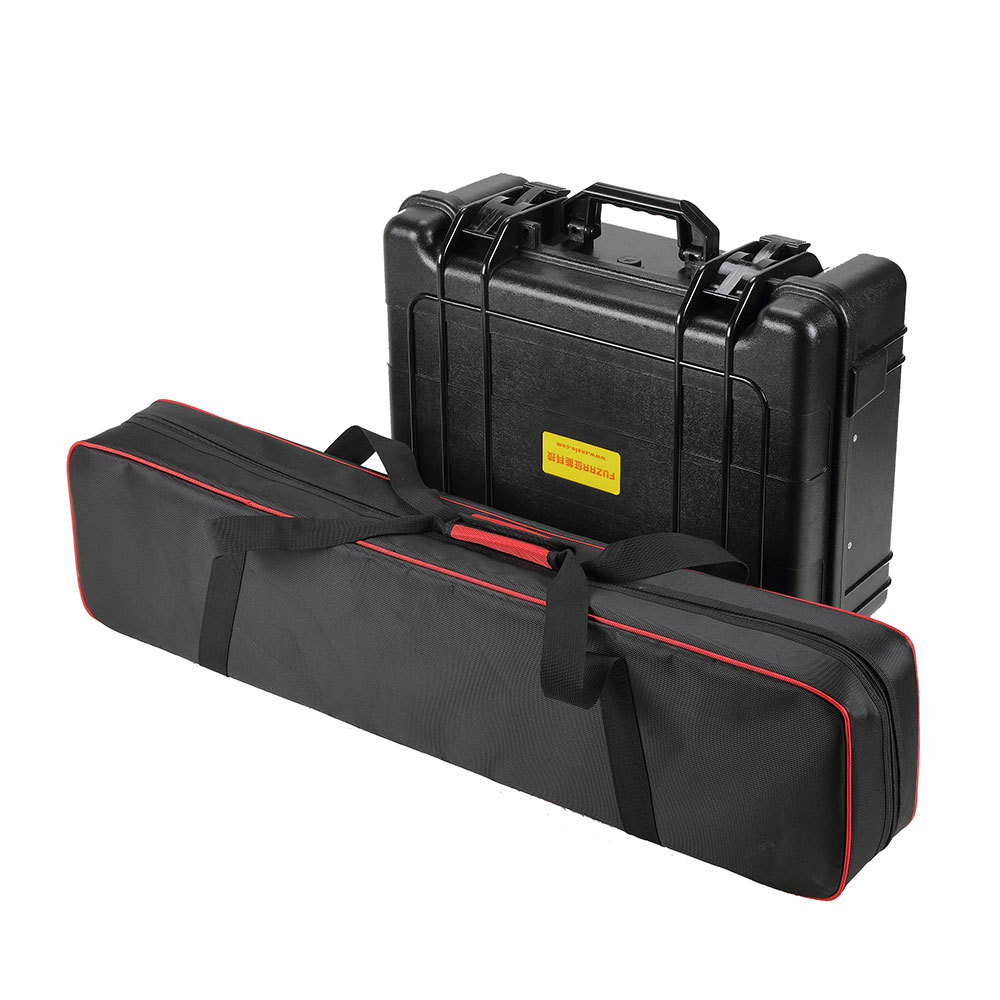

Instrument bag
|
1
|
|
Auxiliary ground rod
|
4 sticks
|
|
Test line
|
4 strips (15m for red, 15m for black, 10m for yellow, 10m for green)
|
|
Simple test lead
|
2 (yellow 1.5m, green 1.5m each)
|
|
220V power cord
|
1
|
|
Manual, Warranty
|
1 set
|
