Ⅱ. Technical Specification
|
Model
|
ES3022
|
ES3022E
|
ES3022F
|
|
Clamp Resistance Range
|
0.00Ω-1500Ω
|
0.00Ω-1800Ω
|
0.00Ω-2000Ω
|
|
Leakage current range
|
0.000mA-40A
|
0.000mA-50A
|
0.000mA-60A
|
|
Current resolution
|
1uA
|
1uA
|
1uA
|
|
Three or four line method
|
0.00Ω-3000Ω
|
0.00Ω-30kΩ
|
0.00Ω-30kΩ
|
|
Soil Resistivity Range
|
○
|
0.00Ω-9999kΩm
|
0.00Ω-9999kΩm
|
|
Ground voltage range
|
600V
|
600V
|
600V
|
|
Bluetooth
|
○
|
○
|
●
|
|
Built-in rechargeable battery
|
●
|
●
|
●
|
|
TFT color display
|
●
|
●
|
●
|
|
USB data upload function
|
●
|
●
|
●
|
|
Data storage
|
●
|
●
|
●
|
|
Battery level real-time indicator
|
●
|
●
|
●
|
|
Backlight
|
●
|
●
|
●
|
|
Alarm function
|
●
|
●
|
●
|
|
Low battery indication
|
●
|
●
|
●
|
|
Overload protection
|
●
|
●
|
●
|
|
○Hollow means no
●Solid indicates yes
|
Ⅲ. Packing List
|
Features
|
Ground resistance test, loop resistance test, AC current test, AC voltage test
|
|
Accuracy Guaranteed Temperature Humidity
|
23℃±5℃, below 75%rh
|
|
Power supply
|
DC 3.7V lithium battery
|
|
Resistor Resolution
|
0.01Ω
|
|
Current resolution
|
0.001mA
|
|
Voltage resolution
|
0.01V
|
|

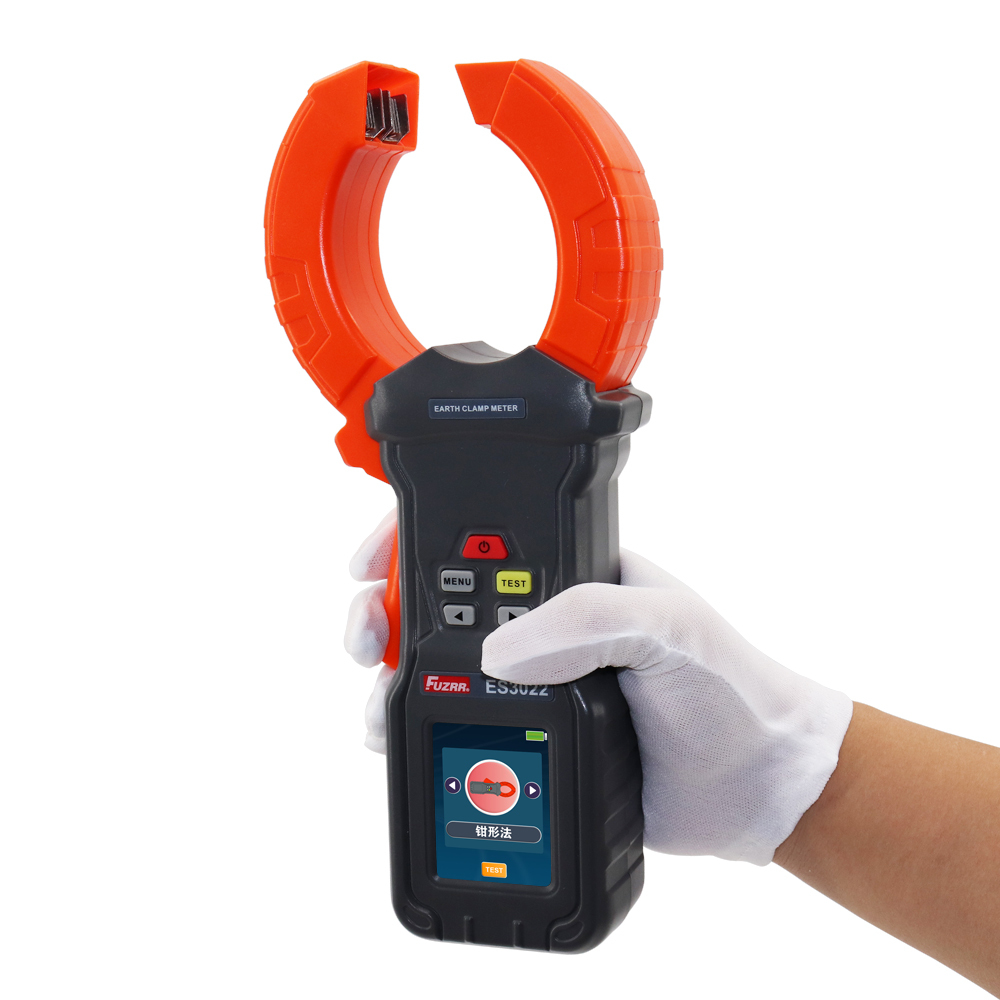

Jaw size
|
68mm
|
|
Display mode
|
2.4 inch color LCD screen
|
|
LCD size
|
46mm×29mm
|
|
Meter size
|
Length, width and height: 273mm×106mm×53mm
|
|
Measure time
|
1 time/second
|
|
USB interface
|
With a USB interface, the stored data can be uploaded to the computer, saved and printed
|
|
Communication line
|
1 USB communication line
|
|
Data storage
|
Maximum 100 sets of data, displaying "FULL" symbol indicates that the storage is full
|
|
Overflow display
|
"OL" symbol indication when overrange overflow
|
|
Alarm function
|
When the measured value exceeds the alarm setting value, an alarm prompt will be issued
|
|
Battery voltage
|
Real-time display of battery power, reminding to charge in time when the battery voltage is low
|
|
Automatic shut-down
|
Automatic shutdown after 15 minutes of startup
|
|
Power consumption
|
750mA MAX
|
|
Quality
|
Meter: 975g (including battery)
|
|
Working temperature and humidity
|
-10℃～40℃; below 80%rh
|
|
Storage temperature and humidity
|
-20℃～60℃; below 70%rh
|
|
Insulation resistance
|
Above 20MΩ (500V between circuit and case)
|
|
Pressure resistance
|
AC 3700V/rms (between circuit and case)
|
|
External magnetic field
|
<40A/m
|
|
External electric field
|
<1V/m
|
|
Suitable for safety regulations
|
IEC61010-1 (CAT III 300V, CAT IV 150V, pollution degree 2);
IEC61010-031; IEC61557-1 (grounding resistance);
|

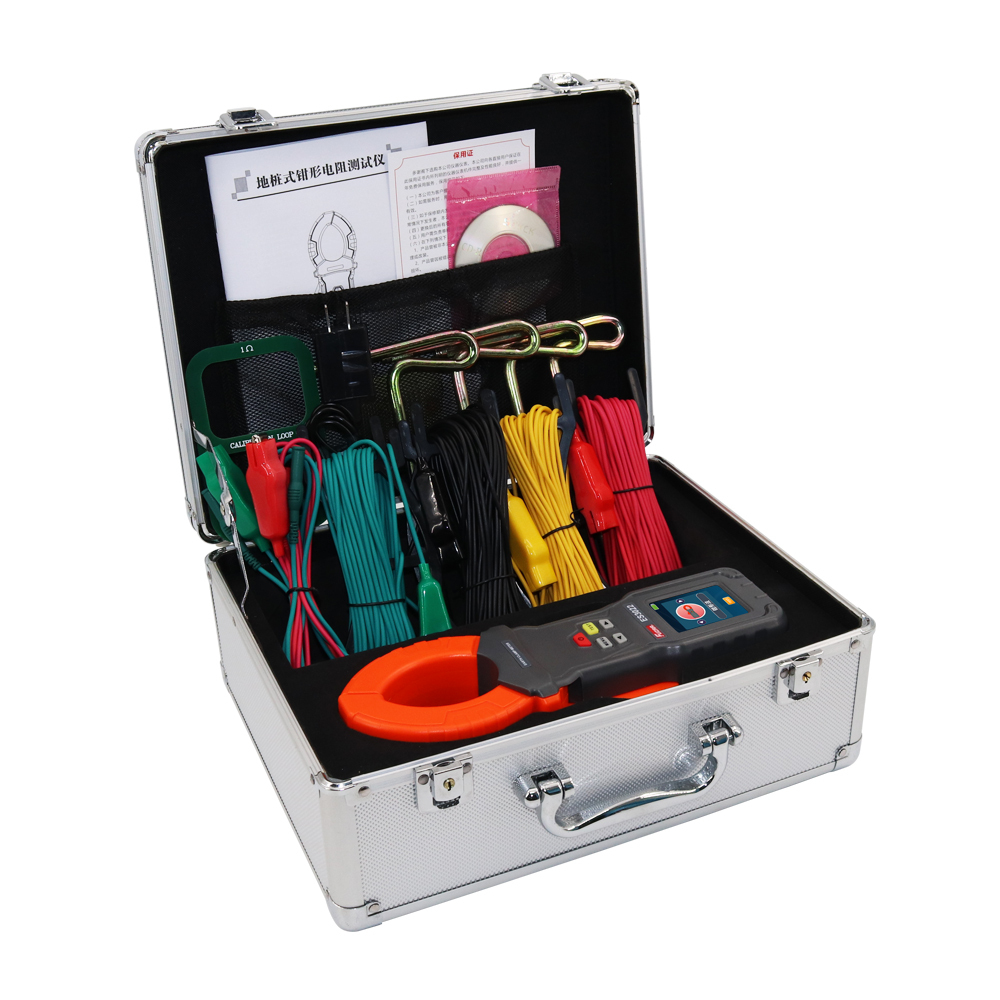

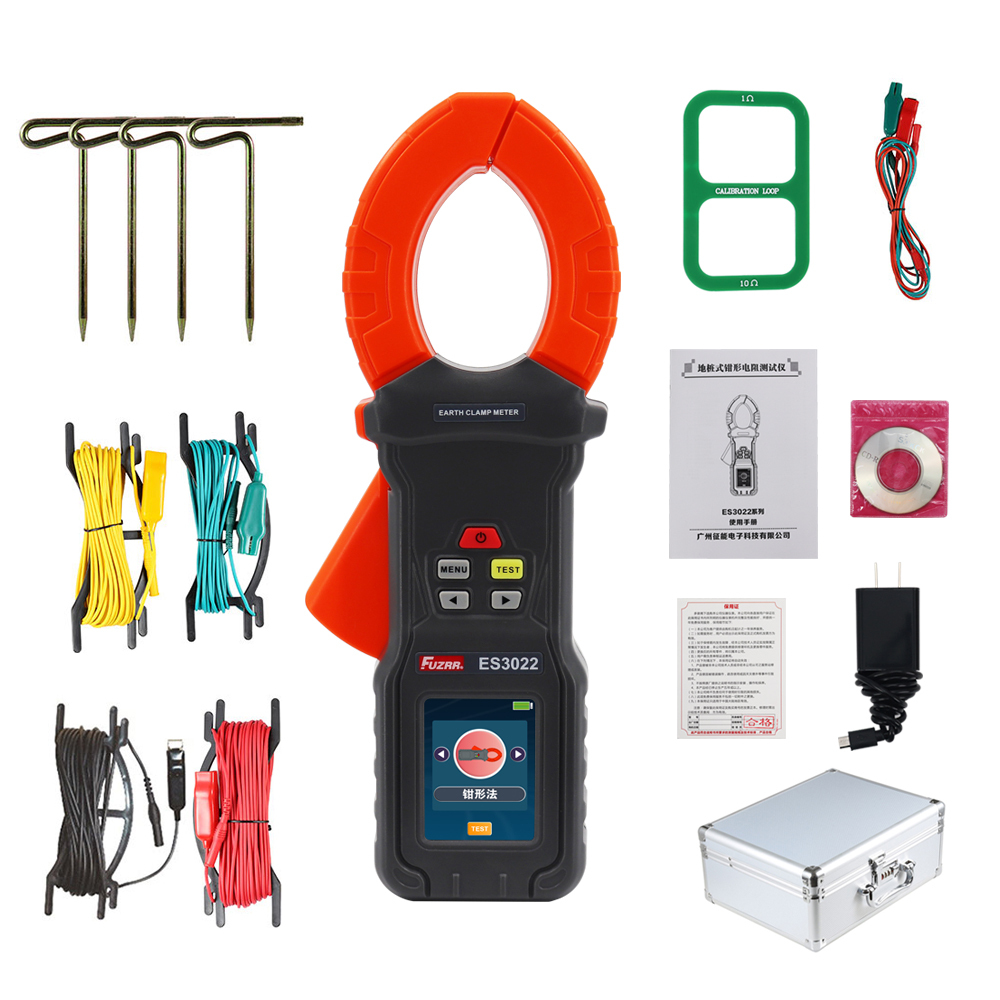

Ⅲ. Packing List
|
Meter
|
1 set
|
|
Test lead
|
4
|
|
Simple test lead
|
2 pieces
|
|
USB communication cable
|
1
|
|
Charger
|
1
|
|
Monitoring software CD
|
1 serving
|
|
Manual, Warranty
|
1 set
|
|
Instrument box
|
1
|
Condition
