Ⅱ. Technical Specification
|
Features
|
Voltage detection, cable tracing
|
|
Baseline conditions
|
23℃±5℃, below 75%rh
|
|
Test voltage (V)
|
380V; 6KV; 10KV; 27.5KV; 35KV; 110KV; 220KV; 500KV
|
|

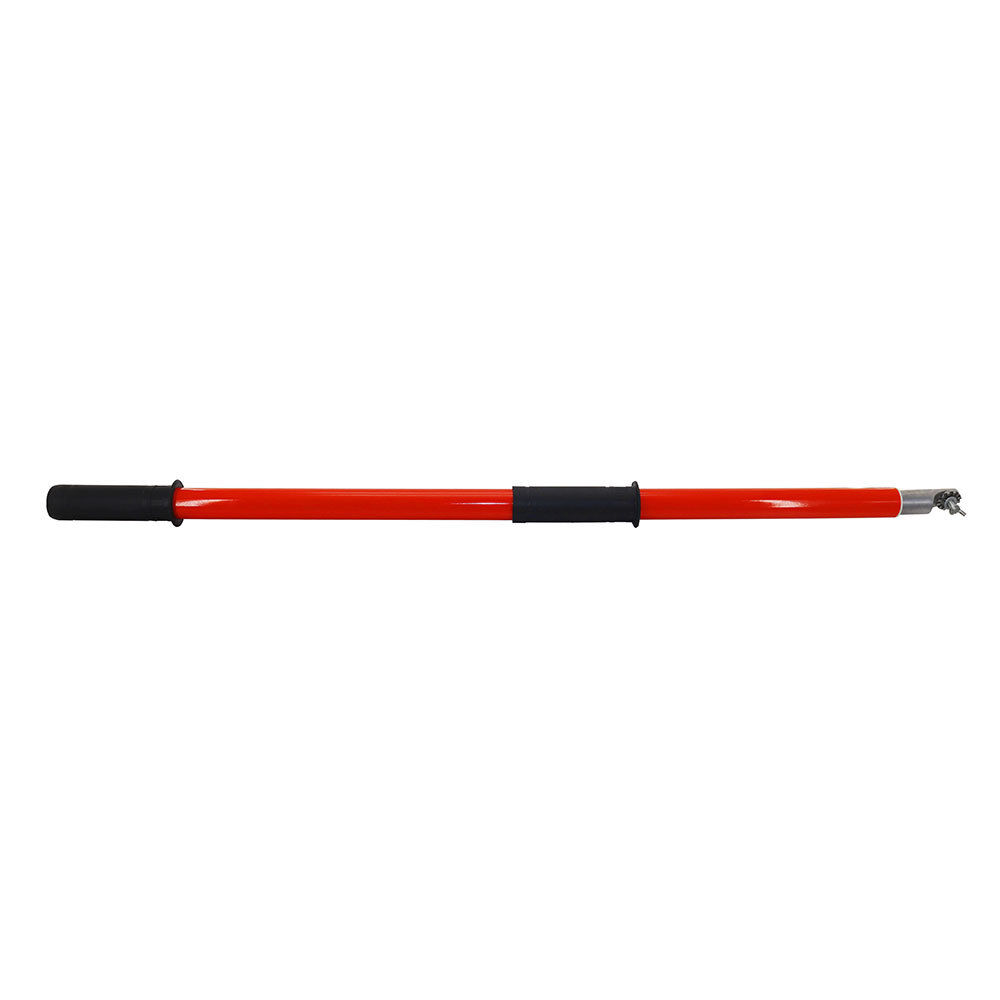

insulating rod
|
4 sections of 3.5 meters (optional)
|
|
power supply
|
DC 9V (one 6F22 battery)
|
|
Meter size
|
115mm (L)×115mm (W)×169mm (H)
|
|
Sealing class
|
IP65
|
|
prompt function
|
When the detected voltage exceeds the gear setting voltage, a sound and light prompt will be issued
|
|
Instrument quality
|
390g (including battery)
|
|
Operating temperature and humidity
|
-10℃～+50℃＜85%RH
|
|
Storage temperature and humidity
|
-15℃～+55℃＜90%RH
|
|
Suitable for safety regulations
|
EN 61326-1 CISPR 11
EN 61000-4-2 EN 61000-4-3
EN 61000-4-8
|

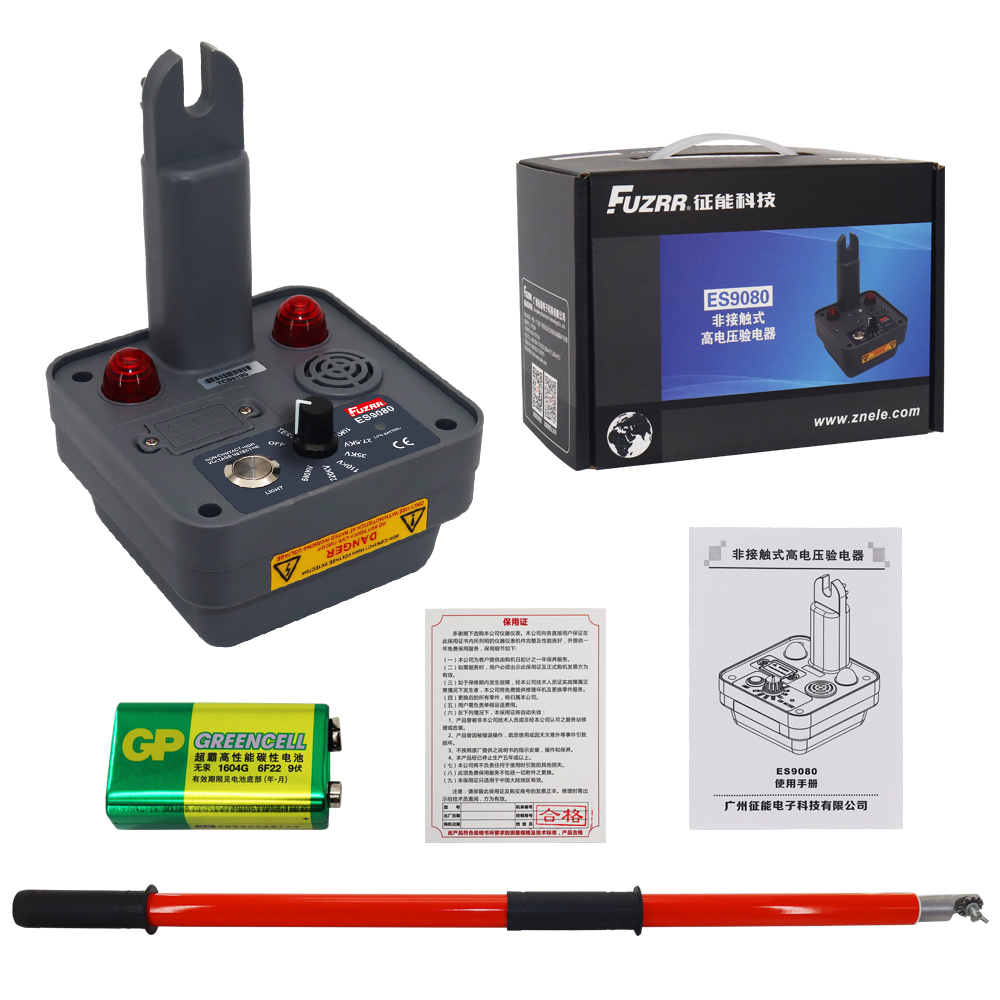

Ⅲ. Packing List
|
Instrument
|
1 set
|
|
9V battery
|
1 section
|
|
Color box
|
1
|
|
Manual, Warranty
|
1 set
|
Condition
PS：What you see is what you get. After receiving the goods, please take an unpacking video for record. If there is any issue with the product, you can return or exchange it within 15 days.
