Ⅱ. Technical Specification
|
Features
|
Wireless high-voltage voltage and induced voltage measurement, high-voltage electrical inspection
|
|
Power supply
|
Receiver: DC6V, 5 AA alkaline batteries
|
|
Detector: Zinc-manganese dry battery 6F22, 9V
|
|
Transmission distance
|
Wireless transmission, straight-line transmission distance of about 30 meters
|
|
Electrical inspection level
|
70V～220kV (110V, 220V, 3kV, 6.3kV, 10kV, 35kV, 66kV, 110kV, 220kV)
|
|
Display range of ground voltage
|
0.1kV～120kV (voltage to ground)
|
|
Display accuracy of ground voltage
|
High-voltage overhead line ±15%±5dgt (other applications: ±25%±5dgt)
|
|
Line voltage display range
|
0.1kV～220kV (corresponding display line voltage, multiply √3 according to the ground voltage)
|
|
Line voltage display accuracy
|
High-voltage overhead line ±15%±5dgt (other applications: ±25%±5dgt)
|
|
Probe diameter
|
Φ70mm
|
|
Probe length
|
55mm
|
|
Radio frequency
|
433MHz
|
|
Display mode
|
3.5 inch color screen
|
|
LCD size
|
72mm×55mm
|
|
Power indicator
|
The detector has a green power indicator
|
|
Electric inspection instructions
|
The detector has sound and light indication function, red double flashing light indication and "beep-beep-beep" buzzer during electricity inspection
|
|
Display rate
|
2 times/sec
|
|
Data storage
|
500 groups
|
|
LCD backlight
|
Have
|
|
Automatic shut-down
|
After about 15 minutes of power on, the meter will automatically shut down
|
|
Low battery indication
|
Low battery voltage, showing low battery symbol“ ”
|
|
Power consumption
|
Detector: 150mA Max; Receiver: 30mA Max
|
|
Instrument quality
|
Instrument: about 450g (including battery);
Detector: about 240g (including battery);
|
|
Instrument size
|
Receiver: 187×119×48mm
Detector: 146×100mm×75mm
|
|
Insulation rod length
|
Maximum diameter Φ38mm; length: 3 meters
|
|
Insulation test
|
Both ends of the insulating rod after stretching: AC 220kV/rms
|
|
Receiver and detector: AC3700V/rms (between exposed metal and plastic case)
|
|
Outside interference
|
No strong electromagnetic field; there should be no 433MHz co-channel interference at the test site
|
|
Working temperature and humidity
|
-10℃～40℃; below 70%rh
|
|
Storage temperature and humidity
|
-10℃～60℃; below 80%rh
|

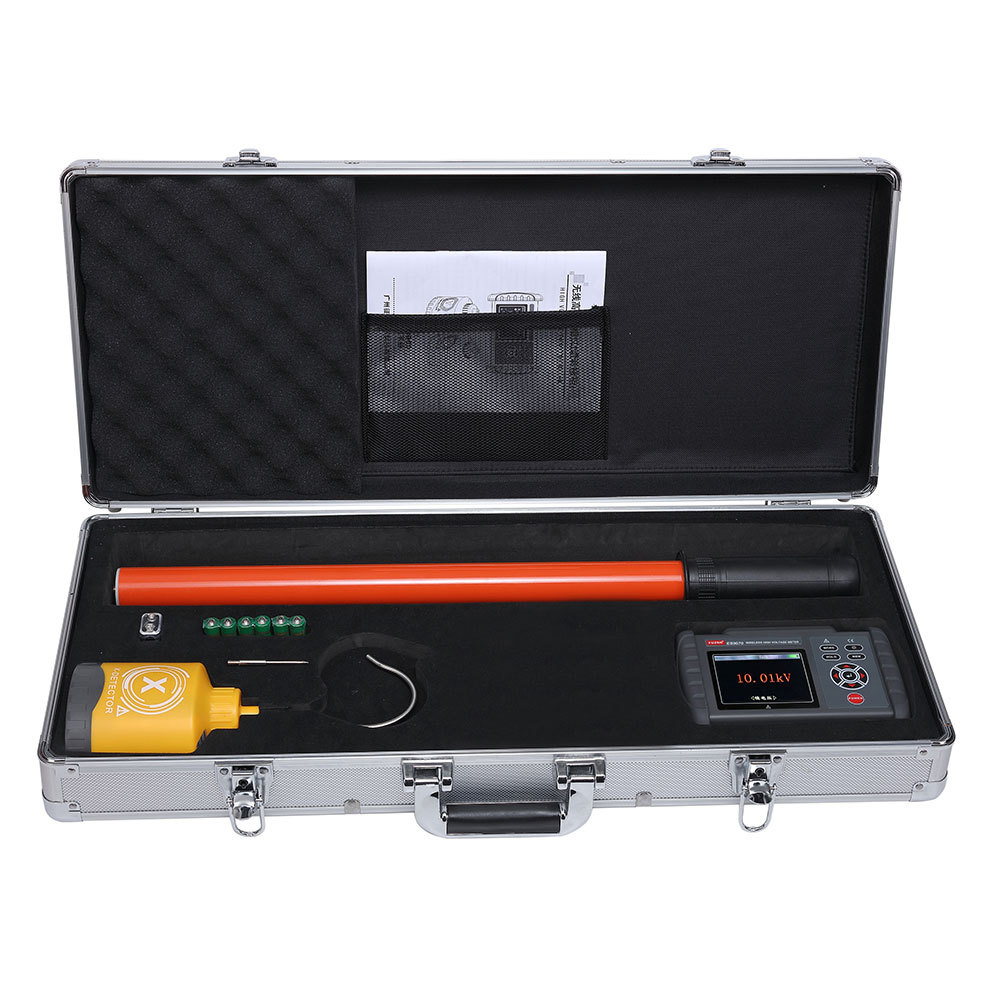

Ⅲ. Packing List
|
Receiver
|
1 set
|
|
Detector
|
1 set
|
|
Probe
|
1
|
|
Probe hooks
|
1
|
|
Insulated rod
|
1
|
|
LR6 battery
|
5 sessions
|
|
6F22 battery
|
1
|
|
Manual
|
1 copy
|
|
Instrument box
|
1
|
Condition
PS：What you see is what you get. After receiving the goods, please take an unpacking video for record. If there is any issue with the product, you can return or exchange it within 15 days.
