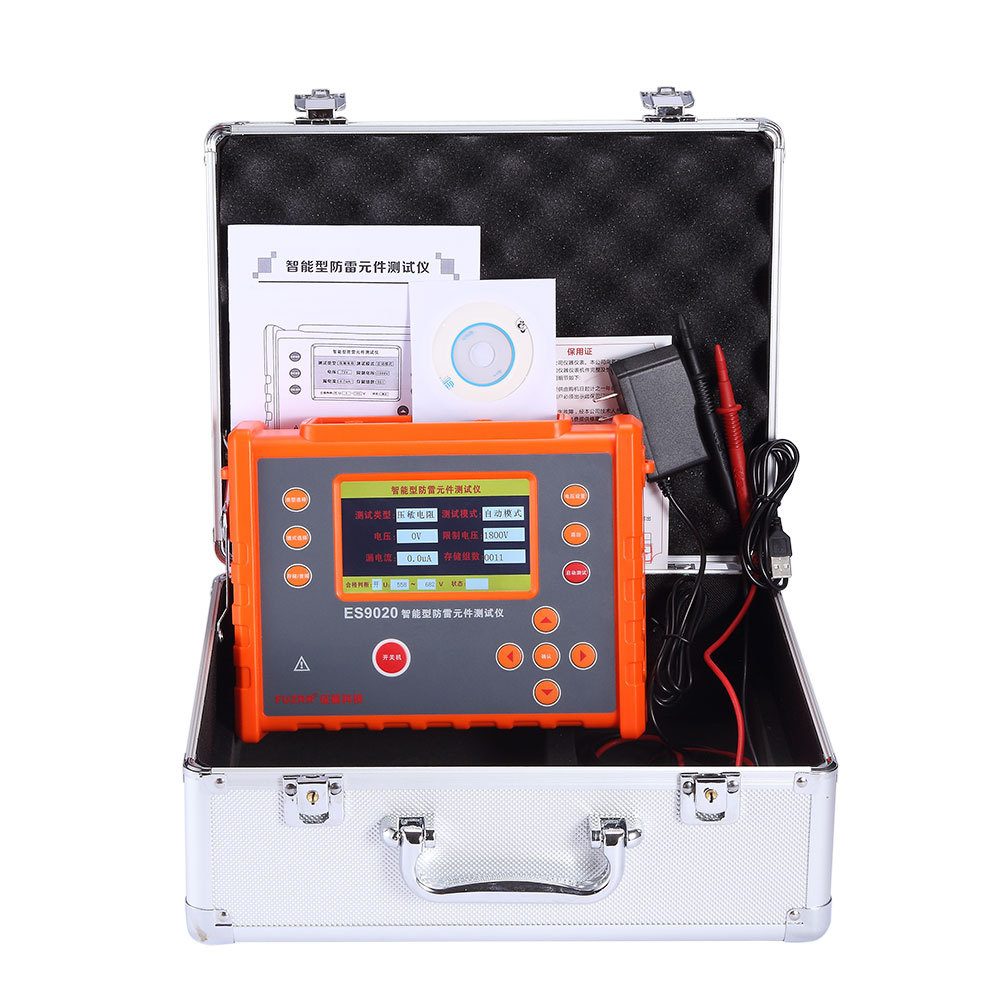

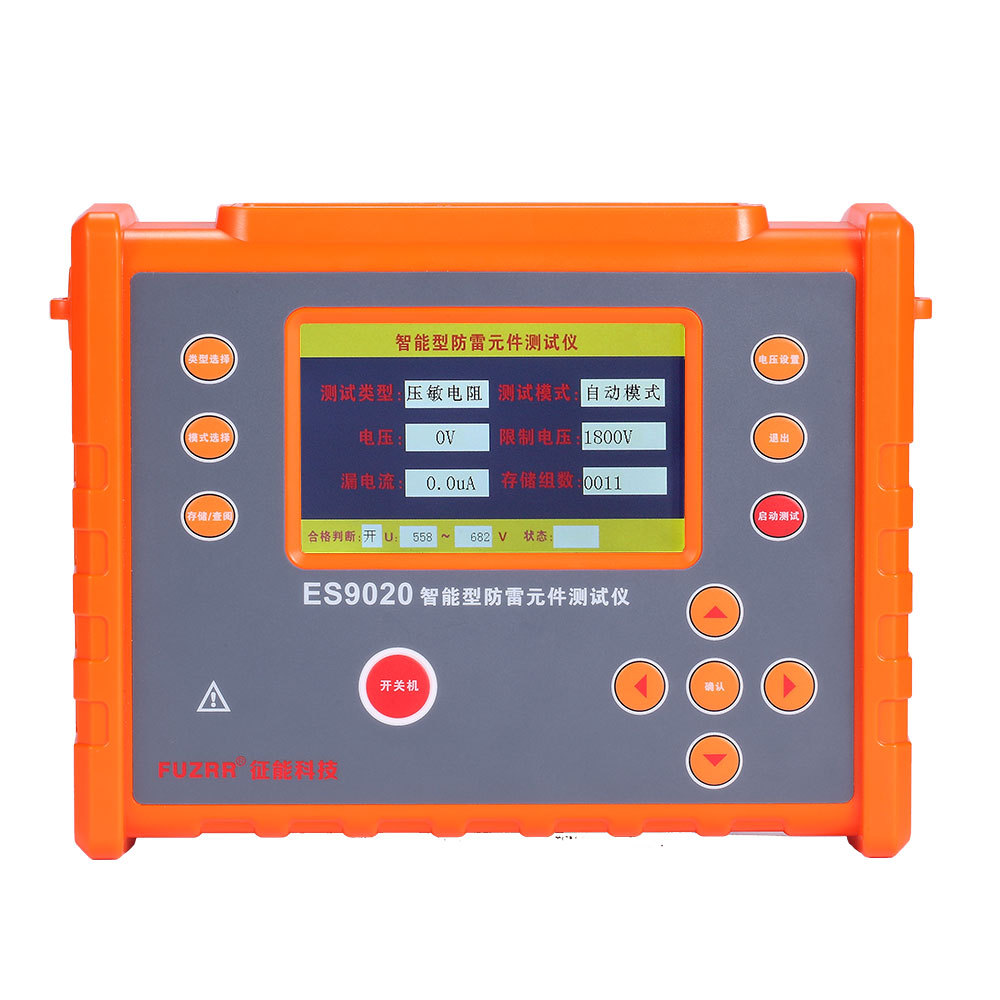

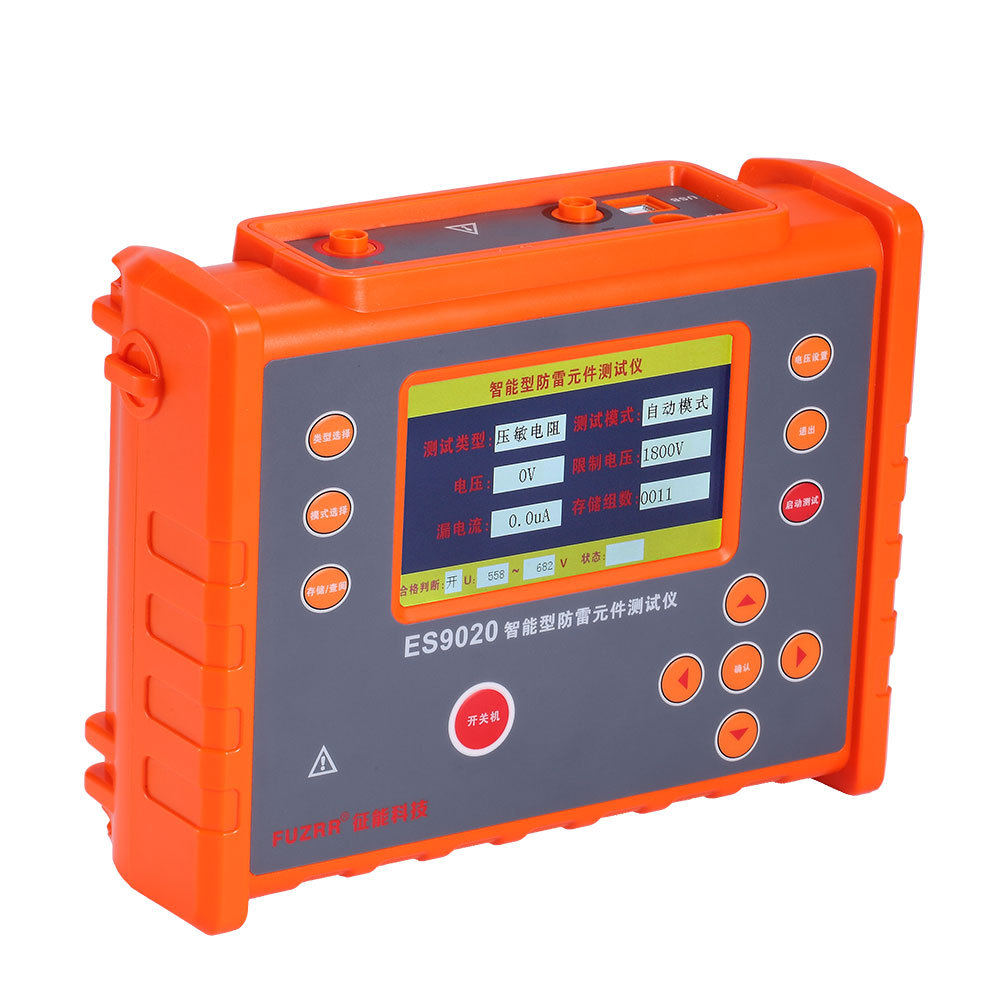

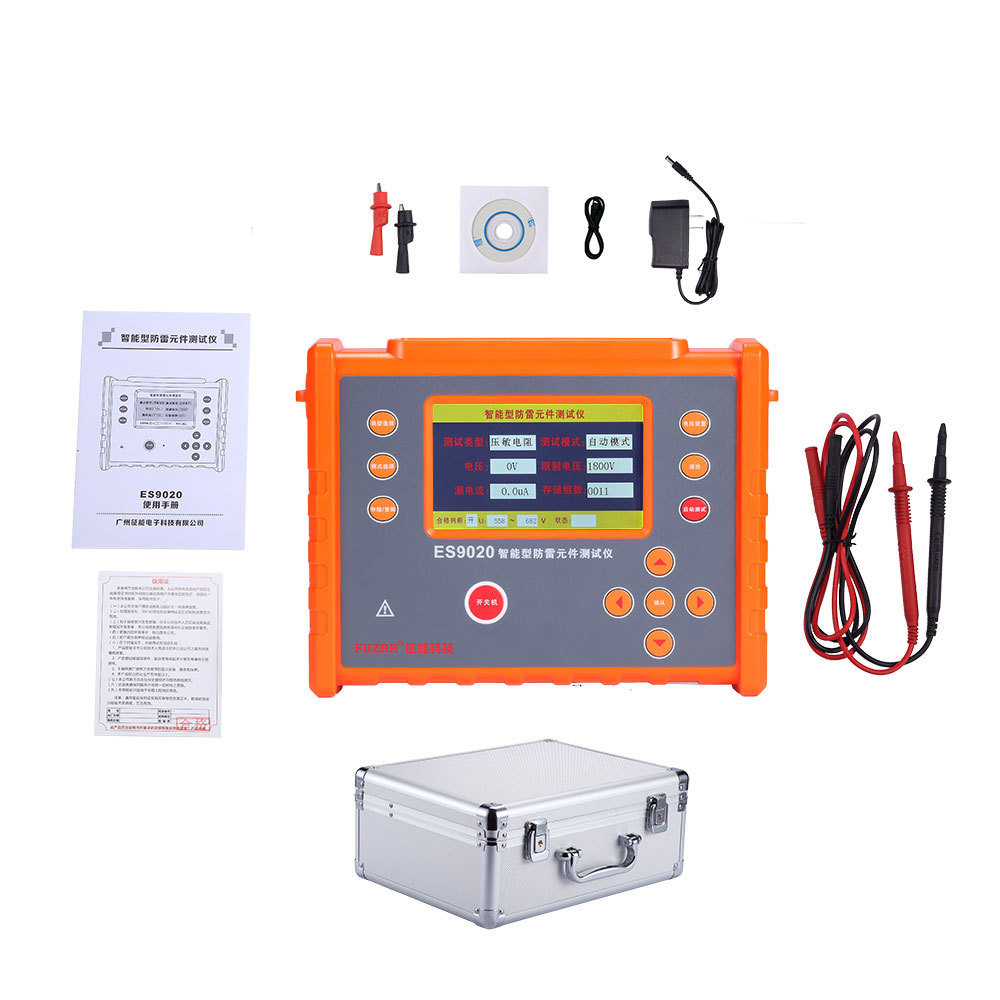

NEW FUZRR ES9020 Intelligent Lightning Protection(SPD) Tester
Ⅰ. Characteristic
ES9020 Intelligent Lightning Protection Component Tester, also known as Lightning Protection Component Tester, SPD Field Tester, is used for performance testing of arresters, lightning arresters, surge protectors, varistors, cermet discharge tubes, straight air arresters, etc. special instrument. The instrument adopts the charging function for offline use, which overcomes the shortcomings of traditional products that are inconvenient for on-site operation to be plugged in. The voltage output 2000V has a wider application range, uses high-voltage short-circuit protection, and has an automatic discharge function. The instrument is reliable, safe and durable. At the same time, it has the function of insulation resistance test, the use of luxury large-color screen display, data storage, data review, qualification judgment, automatic shutdown, USB data upload and other functions. The whole machine is beautiful and high-grade, with a wide range, high resolution, convenient operation, convenient carrying, accurate, reliable, stable performance and strong anti-interference ability.
ES9020 has a shock-proof, dust-proof and moisture-proof structure, and is suitable for harsh working environments. It is a common and indispensable instrument for meteorological lightning protection, electric power, post and telecommunications, communication, electromechanical installation and maintenance, and industrial enterprises that use electric power as industrial power or energy. It is suitable for measuring the performance parameters of various arresters and surge protectors.
ES9020 intelligent lightning protection component tester is composed of medium and large scale integrated circuits. The output power of this watch is large, the initial action voltage measurement range: 0-2000V, the leakage current measurement range: 0.1~199.9uA, the insulation resistance: 0~1000MΩ, the repeatability is good, and the one-key measurement is convenient and fast.
