Ⅱ. Technical Specification
|
Model
|
ES3045
|
ES3045E
|
ES3045F
|
|
Maximum output voltage
|
5000V
|
10KV
|
15KV
|
|
Resistance limit range
|
10TΩ
|
35TΩ
|
50TΩ
|
Ⅲ. Packing List
|
Features
|
Insulation resistance test, voltage test, current test, capacitance test
|
|
Baseline conditions
|
23℃±5℃, below 75%rh
|
|
Rated applied voltage (V)
|
100V；250V；500V；1000V；2500V；5000V
|
Accuracy rated voltage × (1±10%)
|
|
250V；500V；1000V；2500V；5000V；10KV
|
Accuracy rated voltage × (1±10%)
|
|
500V；1000V；2500V；5000V；10KV；15KV
|
Accuracy rated voltage × (1±10%)
|
|
Insulation resistance range (GΩ)
|
0.01MΩ～10TΩ
|
Accuracy: ±3%rdg±5dgt
|
Resolution 0.01MΩ
|
|
0.01MΩ～35TΩ
|
Accuracy: ±3%rdg±5dgt
|
Resolution 0.01MΩ
|
|
0.01MΩ～50TΩ
|
Accuracy: ±3%rdg±5dgt
|
Resolution 0.01MΩ
|
|
DC voltage range
|
0.1～1000V
|
Accuracy: ±1.5%rdg±3dgt
|
Resolution 0.1V
|
|
AC voltage range
|
0.1～750V
|
Accuracy: ±1.5%rdg±3dgt
|
Resolution 0.1V
|
|
DC current measurement
|
0.01nA～6mA
|
Accuracy: ±5.0%rdg±5dgt
|
Resolution 0.01nA
|
|
Capacitance measurement
|
10nF～50uF
|
Accuracy: ±10%rdg±5dg
|
(resolution 10nF)
|
|
Output short circuit current
|
≥6mA
|
|
Absorption Ratio and Polarization Index Measurements
|
Have
|
|
Power supply
|
12V rechargeable battery
|
|
Backlight
|
Controllable gray and white screen backlight, suitable for use in dark places
|
|

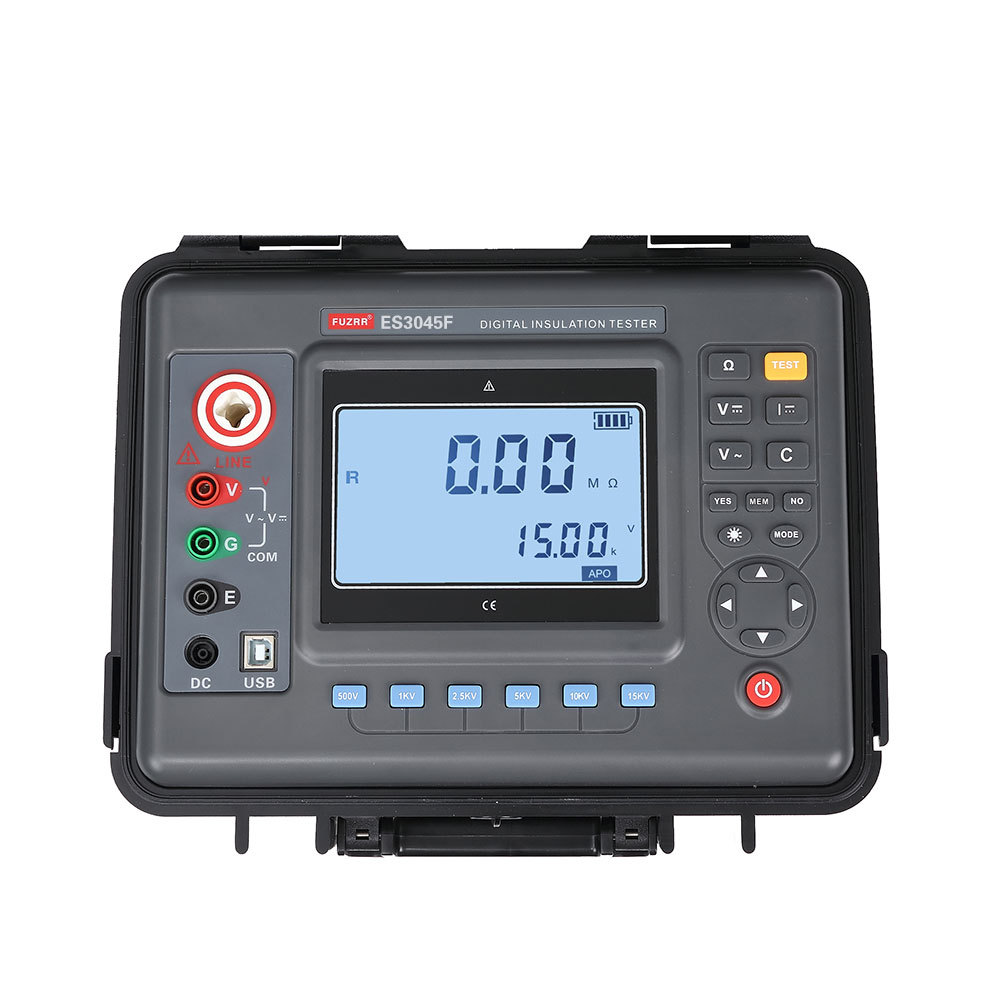

Display mode
|
4-digit large LCD display, gray and white screen backlight
|
|
LCD display size
|
108mm×65mm
|
|
Meter size
|
240mm (L)×188mm (W)×85mm (H)
|
|
USB interface
|
With USB interface, software monitoring, storage data can be uploaded to the computer, save and print
|
|
Communication line
|
1 USB communication line
|
|
Test line
|
High voltage bar red 3 meters, high voltage test line black 1.5 meters, green line 1.5 meters
|
|
Data storage
|
500 groups, flashing "FULL" symbol indicates that the storage is full
|
|
Data access
|
Data access function: "READ" symbol display
|
|
Overflow display
|
Overrange overflow function: "OL" symbol display
|
|
Alarm function
|
When the measured value exceeds the alarm setting value, an alarm prompt will be issued
|
|
Power consumption
|
Standby: 30mA Max (backlight off)
|
|
Turn on the backlight: 42mA Max
|
|
Measurement: 200mA Max (backlight off)
|
|
Instrument quality
|
2340g (including battery)
|
|
Battery voltage
|
Low battery voltage, showing low battery symbol“ ”
|
|
Automatic shut-down
|
The meter shuts down after about 15 minutes of inactivity
|
|
Insulation resistance
|
≥50MΩ (between measurement line and shell)
|
|
Pressure resistance
|
AC3kV/50Hz 1min
|
|
Operating temperature and humidity
|
-10℃～+50℃＜85%RH
|
|
Storage temperature and humidity
|
-15℃～+55℃＜90%RH
|
|
Suitable for safety regulations
|
IEC61010-1, IEC1010-2-31, IEC61557-1, 5, IEC60529 (IP54), pollution, etc. 2, CAT Ⅲ 300V
|

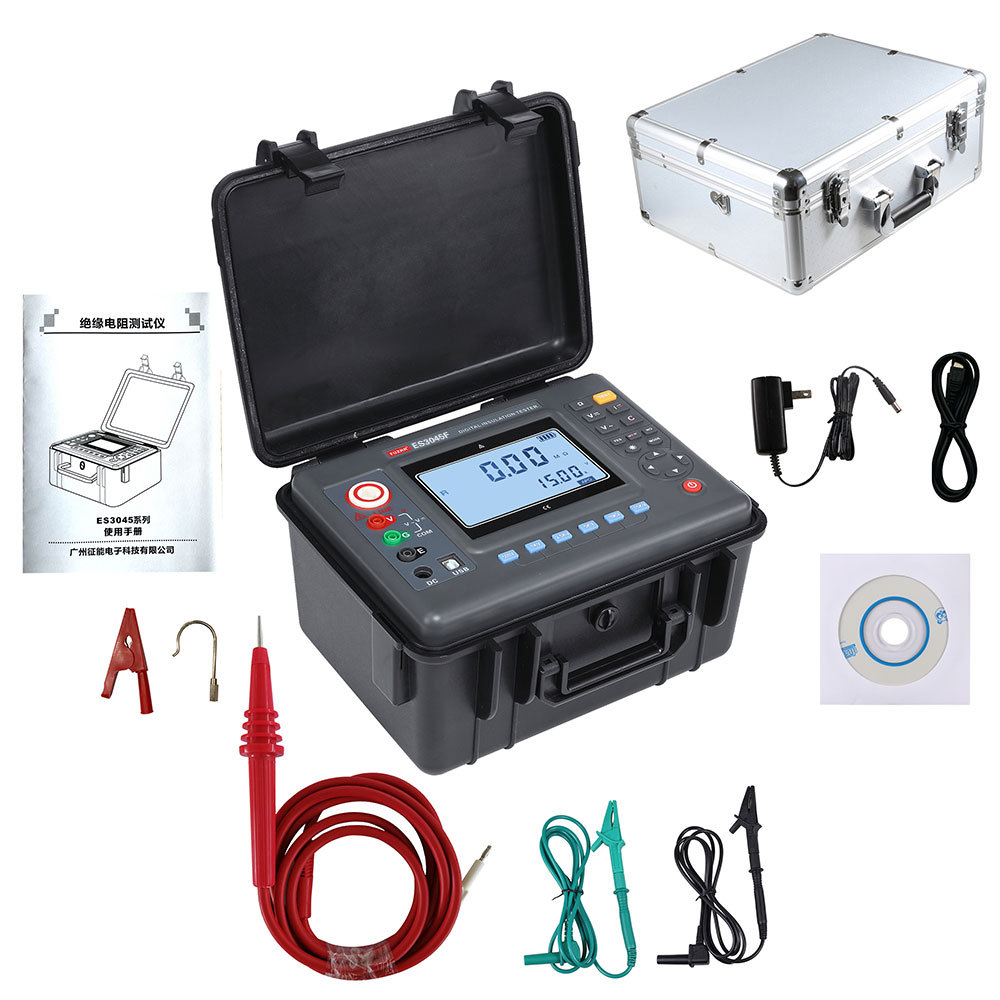

Ⅲ. Packing List
|
Instrument
|
1 set
|
|
High pressure rod
|
1 red
|
|
High Voltage Test Lead
|
2 (black, 1 green each)
|
|
Monitoring software CD
|
1 serving
|
|
USB communication cable
|
1
|
|
Charger
|
1
|
|
Manual, Warranty
|
1 set
|
|
Instrument box
|
1
|
