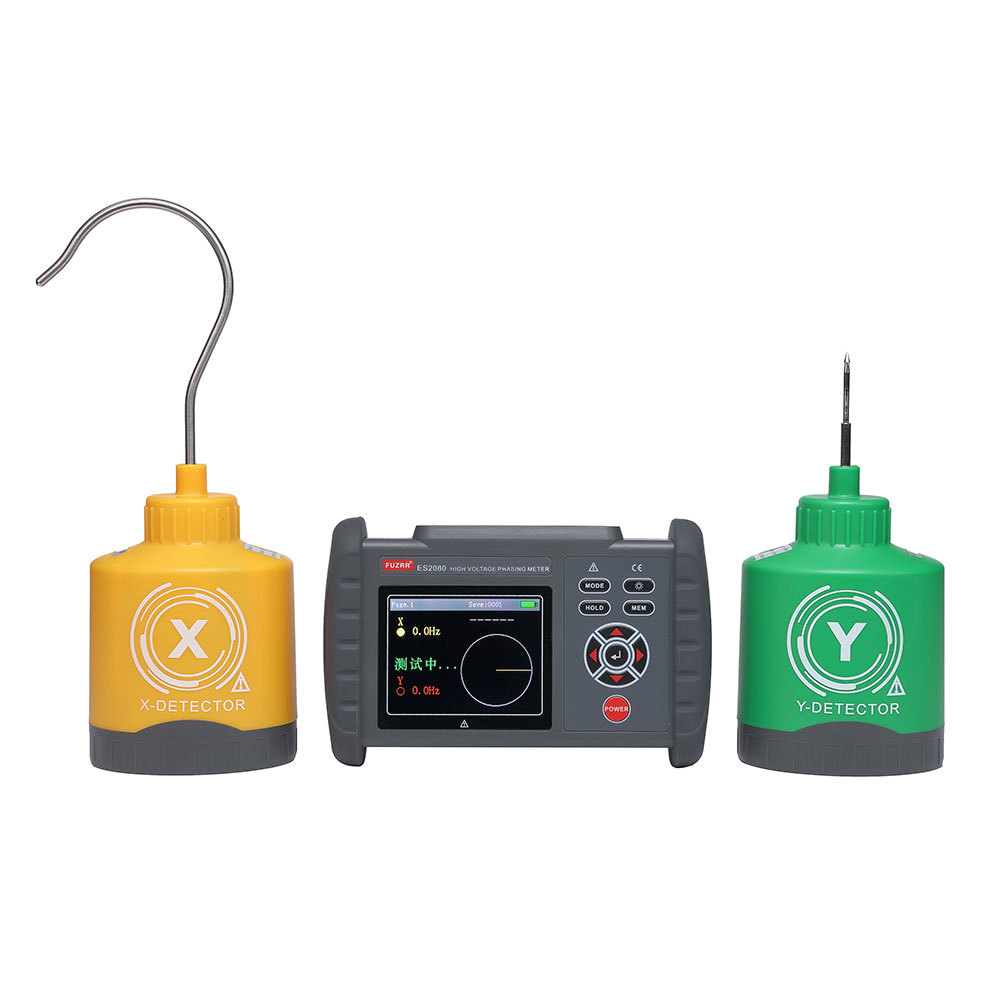

Ⅱ. Model Specifications
|
Model
|
ES2080
|
ES2080A
|
|
*Voltage measurement function
|
Have
|
N/A
|
Ⅲ. Technical Specification
|
Features
|
Frequency measurement, phase measurement, phase sequence display, *voltage measurement, voltage inspection
|
|
Phase detection method
|
Contact phase detection: The bare wire below 35kV or the wire with insulating sheath below 550kV can be contacted for phase detection and non-contact phase detection.
When the bare line voltage exceeds 35kV, a non-contact test must be used, and the probe is gradually approached to the wire to detect the phase
|
|
Transmission distance
|
Wireless transmission, straight-line transmission distance of about 30 meters
|
|
Differential characterization
|
In-phase: -25°～25°
|
Out of phase: 95°～145° and 215°～265°
|
|
Phase detection voltage
|
70V～550kV
|
|
Phase range
|
0.0°～360.0°; Accuracy: ≤±12°; Resolution: 0.1°
|
|
Frequency range
|
45.0Hz～65.0Hz; Accuracy: ≤±2Hz; Resolution: 0.1Hz
|
|
*Voltage range
|
70V～110kV; Accuracy: ±10% Resolution: 100V
|
|
Transmit frequency
|
433MHz, 315MHz
|
|
Display mode
|
3.5 inch color screen
|
|
LCD display size
|
72mm×55mm
|
|
Meter size
|
Host 187×119×48mm
|
|
Detector 146×100×75mm
|
|
Phase indication
|
Simultaneous display of phasor diagram and numbers
|
|
Work instructions
|
When the phase detector has sound and light indication function, red double flashing light indication and "beep-beep-beep" beep
|
|
Data storage
|
300 groups, flashing "FULL" symbol indicates that the storage is full
|
|
Data access
|
Data access function: "READ" symbol display
|
|
Alarm function
|
When the measured value exceeds the alarm setting value, an alarm prompt will be issued
|
|
Power consumption
|
Detector: 30mA Max
|
|
Host: 150mA Max
|
|
Instrument quality
|
Instrument: about 450g (including battery);
|
|
Battery voltage
|
Low battery voltage, showing low battery symbol“ ”
|
|
Automatic shut-down
|
The meter shuts down after about 15 minutes of inactivity
|
|
Insulation rod length
|
Maximum diameter Φ38mm; length: 3 meters
|
|
Insulation test
|
Both ends of the insulating rod after stretching: AC 220kV/rms;
|
|
Working temperature and humidity
|
Host and detector: AC3700V/rms (between exposed metal and plastic casing)
|
|
Storage temperature and humidity
|
-10℃～40℃; below 70%rh
|
|
Suitable for safety regulations
|
-10℃～60℃; below 80%rh
|
|
GB13398-92, GB311.1-311.6-8, 3DL408-91 standards and the newly promulgated national power industry standard "General technical conditions for 1kV ~ 35kV portable nuclear phase detectors for live work DL/T971-2005" requirements
|
*ES2080 only

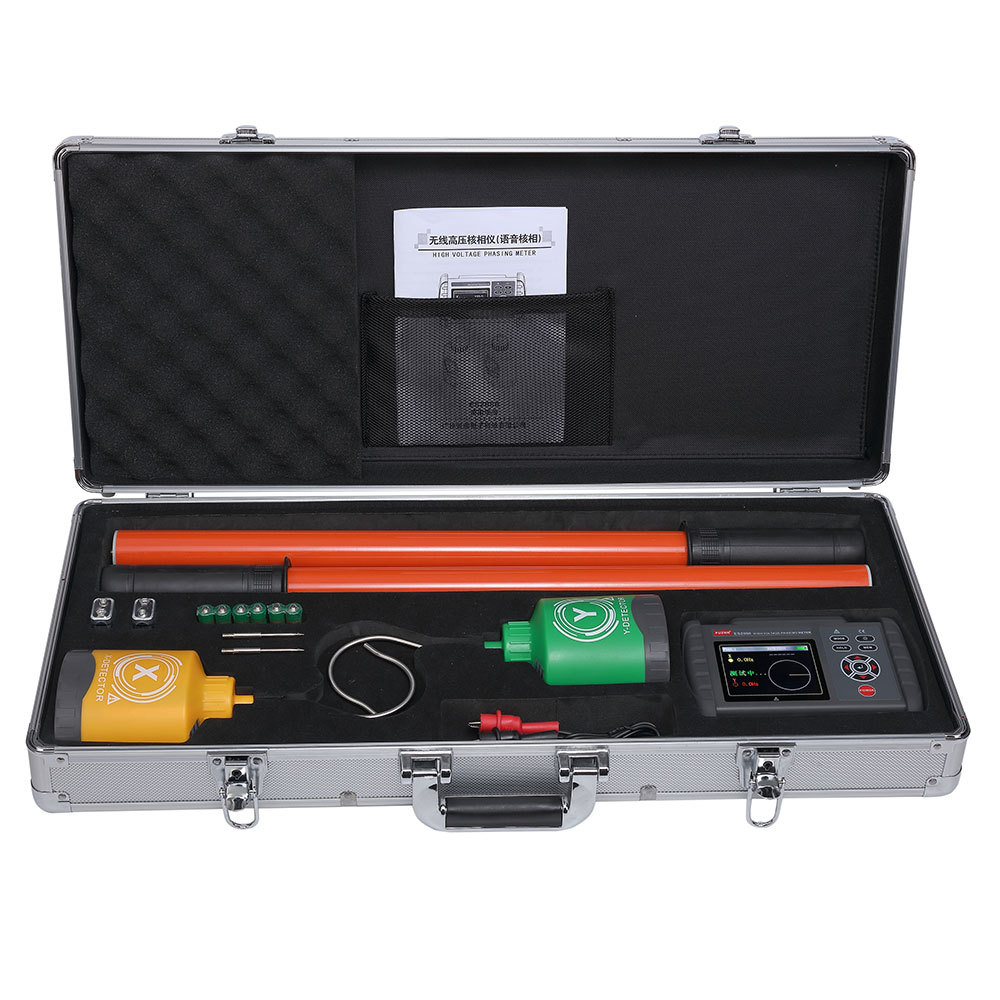

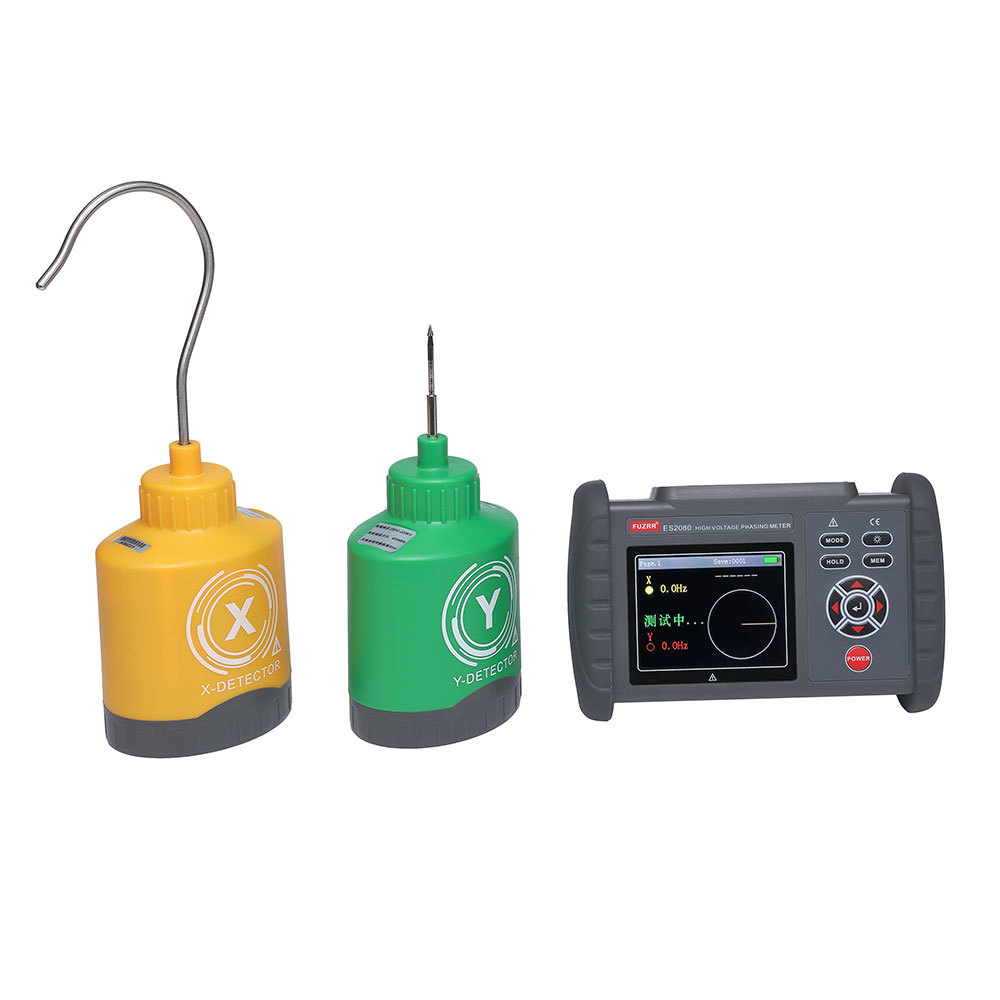

Ⅲ. Packing List
|
Receiver
|
1 set
|
|
Detector
|
2 units
|
|
Probe
|
2 pieces
|
|
Check
|
2 pieces
|
|
Insulated rod
|
2 pieces
|
|
LR6 battery
|
5 pieces
|
|
6F22 battery
|
2
|
|
Inspection line
|
1
|
|
Manual
|
1 copy
|
|
Instrument box
|
1
|
Condition
